Servo controlled high-precision single roll front conveyor vertical and horizontal cutting machine

Kind reminder: Welcome to visit Wenzhou Oudan Machinery Co., Ltd Official website, if you need to order, please call to inquire. Thank you!

Information
Product Video
Sample Center

Performances and Features:

1. The machine adopt PLC system to control the cutting length with auto counting and alarming stop function.

2. The machine can be equipped 1,2 or 4 unwinders and cross cutting at the same time.

3. Machine comes with slitting function (for A4/A3 paper size) and equipped with trim reject fan to remove the slit edge of web.

4. Automatic lifting conveyor belt structure, convenient material stacking.

Scope of Application:

The machine is special designed for slitting and cross cutting the big jumbo roll materials to A4/A3 size and other big jumbo roll materials, such adhesive sticker,etc.Themachine is widely apply to paper products processing industry, printing and packaging industry.

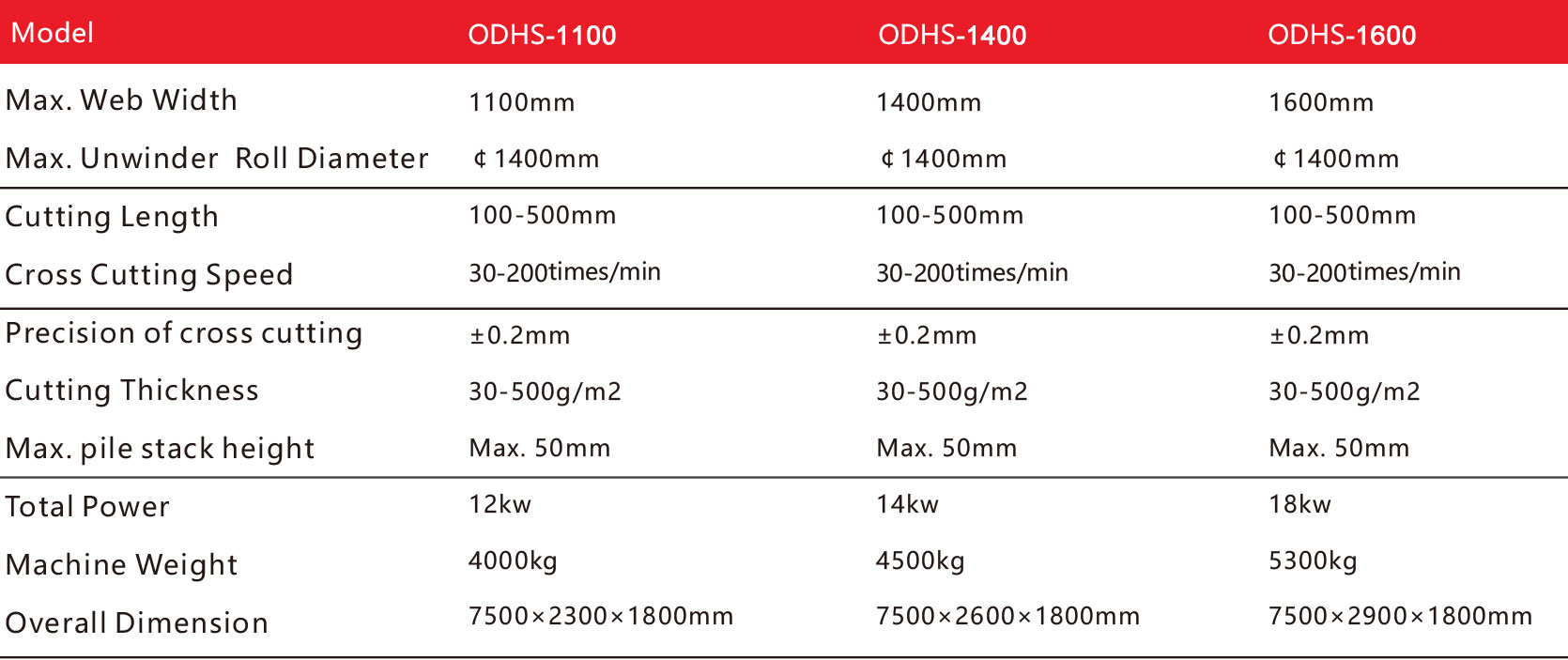

Main technical parameters:

Four discharge A4 cut paper packaging production line
Double discharge A4 cut paper packaging production line
High speed web slitting machine Kraft paper slitting machine
Single roll front conveyor cross cutting machine
Automatic discharge of adhesive cutting machine
Fully automatic film/non-woven fabric high-speed cutting machine
Paper grade tube slitting machine
Four discharge automatic sorting and cutting machine
